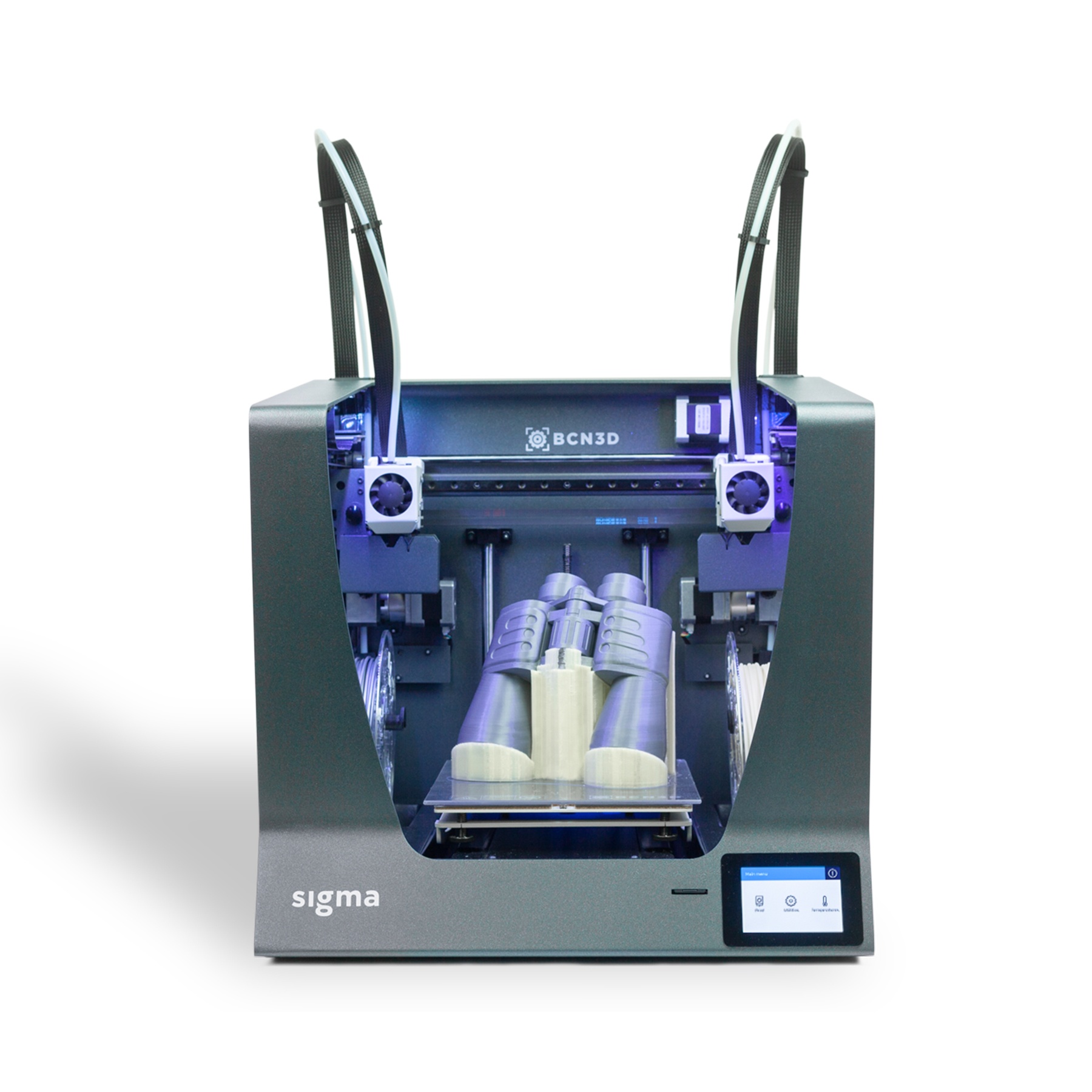

BCN3D Sigma Release 2019

2,475.00 2,425.00

Fast yet detailed

Print up to three times faster without giving up quality: finer outlines and coarser infills.

Quiet like a breeze

Reengineered cooling strategies allow to keep up the performance while reduce drastically the operating sound. Put a Sigma on your desktop!

Accuracy redefined

Redesigned stepper drivers and improved power management set a new milestone in the accuracy of FFF 3D printers.

Open filament system, unlimited versatility

With its optimized full metal hotends the Sigma can print any material you need to fit your requirements, from the common PLA to the most advanced technical plastics like Nylon or PC, independently the manufacturer.


Contact us for more information



A new standard

The unique Independent Dual Extruder system allows to print 2 different materials or colours while ensures the finest surface finish. The idle toolhead remains parked, preventing the dripping of molten plastic onto the part.

You choose: multimaterial or multicolor

Create functional parts by combining the properties of two different materials, like rigid and flexible filaments. Or make your designs more attractive by printing with two colours.

Print further, print soluble supports

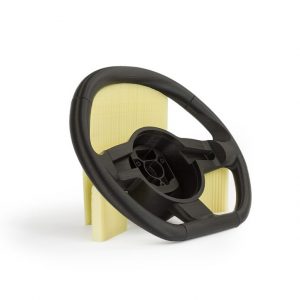

Avoid geometric limitations and print the most challenging parts thanks to soluble supports. Just immerse the model into water and watch the supports vanish.

Such a big family

A hotend suitable for each moment: print either the tiniest or the biggest model, use abrasive filaments to materialize your functional part or take the best profit of the IDEX system by combining different nozzle sizes.

Sold separately

Feel the touch

Operate flawlessly the Sigma via its full colour touchscreen. The attractive and intuitive interface is fully equipped with advanced features that guides the user step by step.

Technical specifications:

  • Production system: FDM (Fused Deposition Modeling) with two independent Extruders / IDEX (Independent Extruders)
  • Construction area: DIN A4, X: 210mm , Y: 297mm , Z: 210mm
  • Power: 300 w (MAX)
  • Extrusion System: Bowden quick release
  • Screen: Touchpad (Kleur) Compatible materials: PLA, ABS, Filaflex, PVA, HIPS, Composites (PLA + wood, brass, copper, fiber, ceramics)
  • Elektronica: BCN3DElectronics V1. The drivers of the motors are independent of the motherboard. FFC kabels (Flat flexibele kabel).
  • Diameter filament: 3mm
  • Minimum thickness: 50 pm
  • Dimensions ext .: 460x446x450mm
  • Connection: USB / Firmware Marlin 1.01 BCN3D
  • Compatibele software: Open Source Software Cutting programs – Cura, Slic3r
